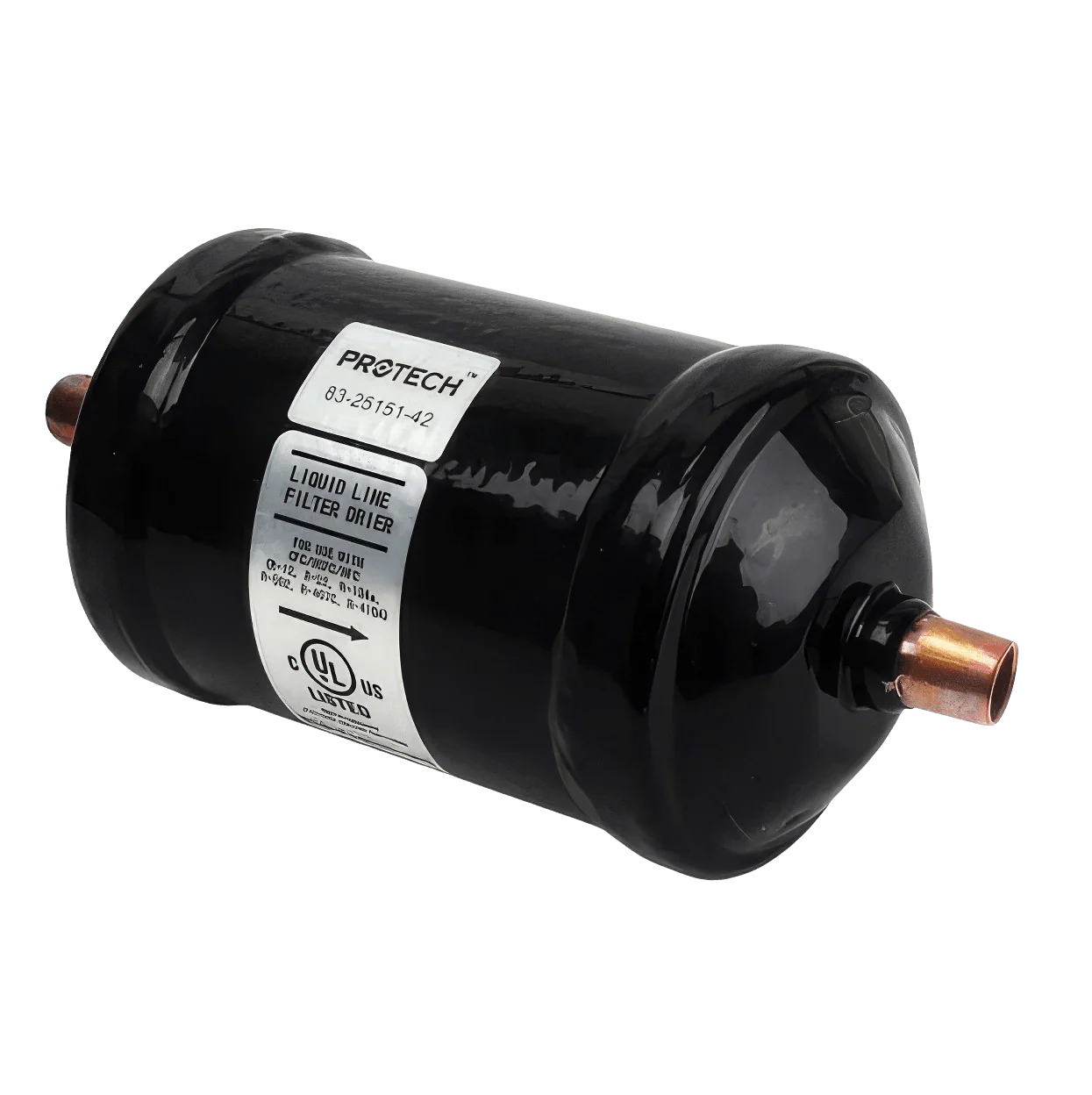

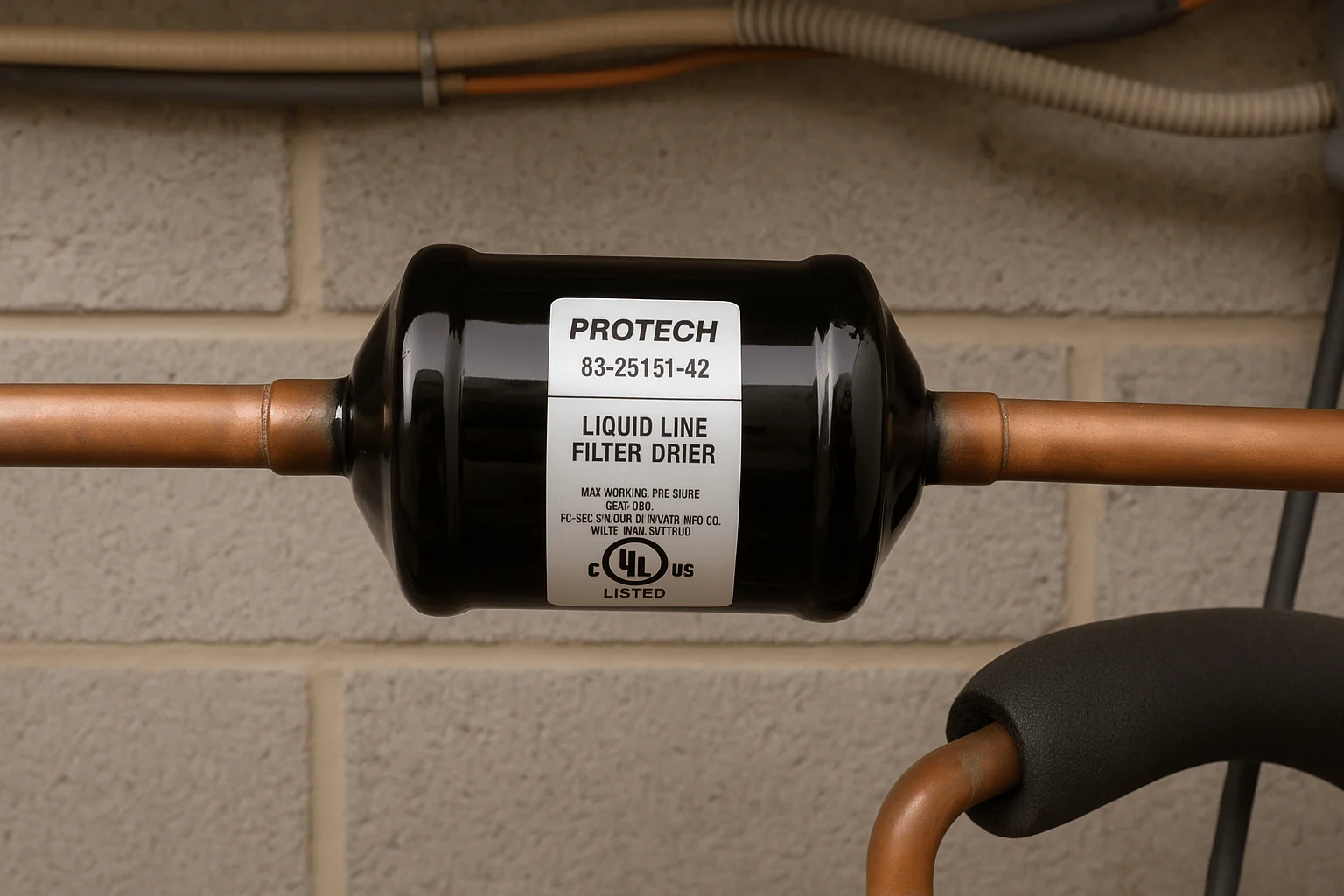

Rheem 3/8 inch Sweat ODF 16 cu. in Liquid Line Uni-Directional Filter Drier

Product image 1
Product image 2

Rheem 3/8 inch Sweat ODF 16 cu. in Liquid Line Uni-Directional Filter Drier

Designed for high-performance HVAC systems, the Rheem 163S Liquid Line Filter Drier ensures optimal protection and efficiency by filtering out moisture and contaminants before they reach critical system components. With a 3/8-inch sweat ODF connection and uni-directional flow, this filter drier is engineered for compatibility with systems using R-22 and R-410A refrigerants.

Key Features:

  • Type: Liquid Line, Uni-Directional
  • Connection Size & Type: 3/8 inch, Sweat ODF
  • Cubic Capacity: 16 cu. in
  • Flow Capacity:
    • 6.2 tons (R-22, AHRI rated)
    • 6.3 tons (R-410A, AHRI rated)
  • Maximum Working Pressure: 680 psi
  • Minimum Burst Pressure: 1 psi Drop
  • Dimensions:
    • Body Length: 4-5/8 inch
    • Overall Length: 6-1/8 inch
    • Diameter: 2-5/8 inch
Select Style
From $17.40
Rheem 3/8 inch Sweat ODF 16 cu. in Liquid Line Uni-Directional Filter Drier—
$17.40

Product Information

Shipping & Returns

Description

Designed for high-performance HVAC systems, the Rheem 163S Liquid Line Filter Drier ensures optimal protection and efficiency by filtering out moisture and contaminants before they reach critical system components. With a 3/8-inch sweat ODF connection and uni-directional flow, this filter drier is engineered for compatibility with systems using R-22 and R-410A refrigerants.

Key Features:

  • Type: Liquid Line, Uni-Directional
  • Connection Size & Type: 3/8 inch, Sweat ODF
  • Cubic Capacity: 16 cu. in
  • Flow Capacity:
    • 6.2 tons (R-22, AHRI rated)
    • 6.3 tons (R-410A, AHRI rated)
  • Maximum Working Pressure: 680 psi
  • Minimum Burst Pressure: 1 psi Drop
  • Dimensions:
    • Body Length: 4-5/8 inch
    • Overall Length: 6-1/8 inch
    • Diameter: 2-5/8 inch
